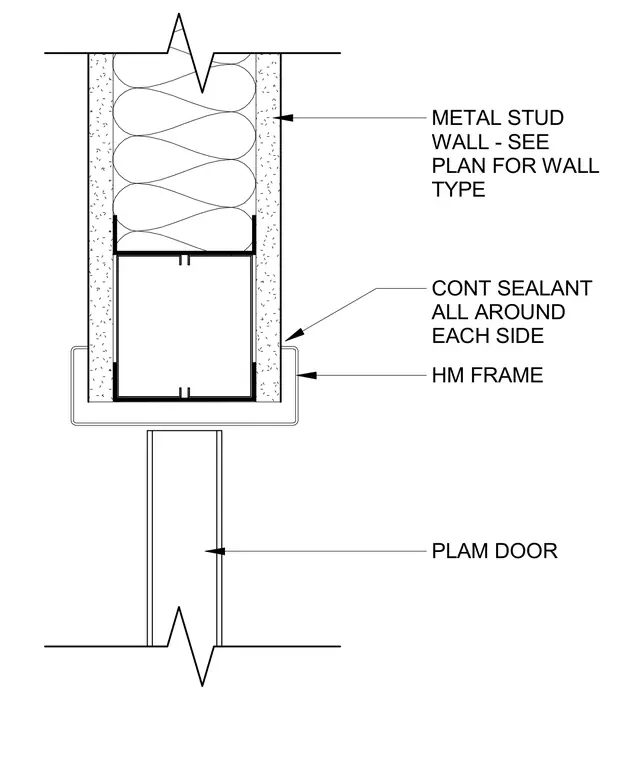

A hollow metal door frame is set within a metal stud wall configuration sized per plan. Continuous sealant is applied all around each side between the frame and the wall finish. A plastic laminate door interfaces with the hollow metal frame assembly.
METAL STUD WALL - SEE PLAN FOR WALL TYPE HM FRAME PLAM DOOR CONT SEALANT ALL AROUND EACH SIDE
