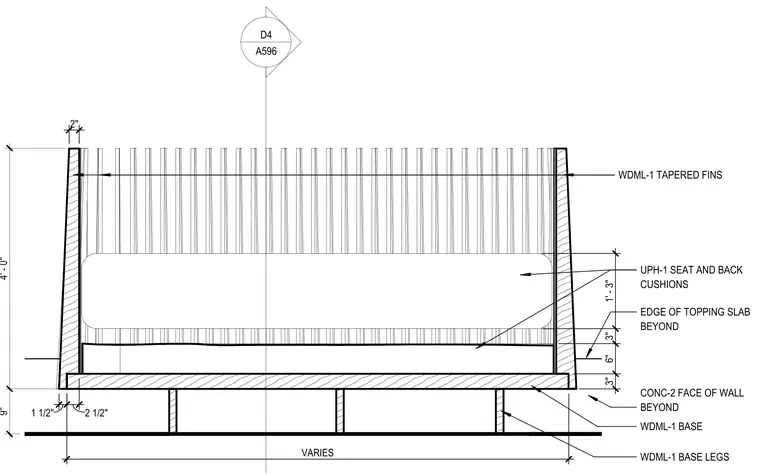

A custom built-in banquette assembly rests on a concrete floor structure. The unit features WDML-1 tapered fins and a WDML-1 wood base supported by vertical WDML-1 base legs spaced at a variable distance. The seating area includes UPH-1 seat and back cushions positioned above the structural base and a concrete face of wall and topping slab visible beyond.
D4 A596 9 " 4 ' - 0 " 1 1 / 2 " 2 1 / 2 " 3 " 6 " 3 " 1 ' - 3 " 2 " WDML-1 TAPERED FINS WDML-1 BASE CONC-2 FACE OF WALL BEYOND EDGE OF TOPPING SLAB BEYOND UPH-1 SEAT AND BACK CUSHIONS V A R I E S WDML-1 BASE LEGS
