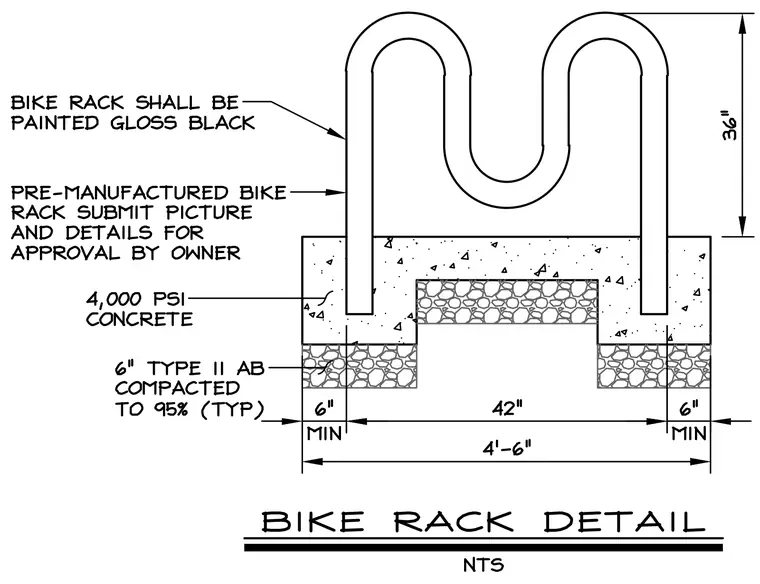

A pre-manufactured bike rack is embedded into a four thousand pounds per square inch concrete footing. The footing sits on a six-inch Type II aggregate base compacted to ninety-five percent typical. The overall width of the concrete footing measures four feet six inches with six-inch minimum margins and a forty-two-inch center section. The vertical bike rack height is thirty-six inches and is finished with a gloss black paint coating.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
