Architectural · A-P2PSV

Pipe Protection Plate

Materials

Steel

Elements

Columns Walls Floors / Slabs Anchors / Embeds Connections / Plates Reinforcing

Connections

Embed Plate

About this detail

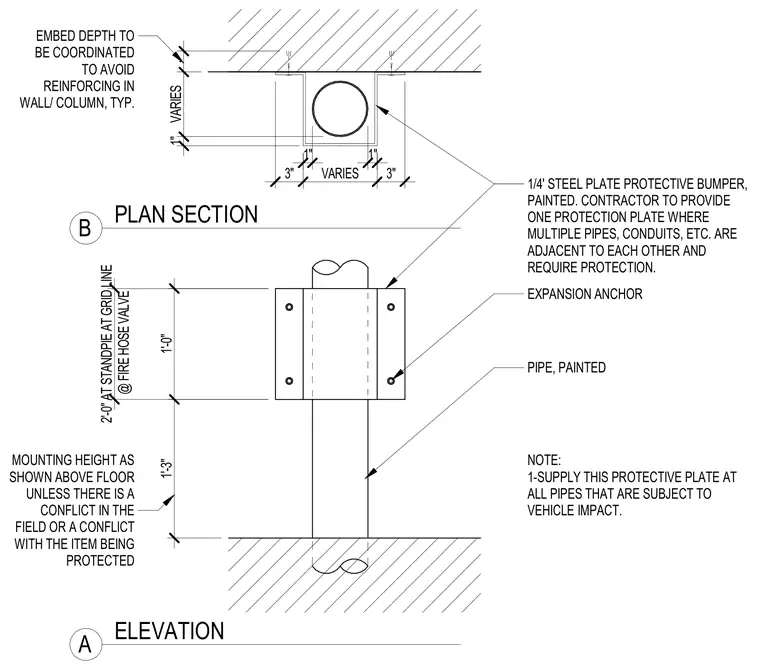

A quarter-inch painted steel protective plate shields exposed vertical pipes, conduits, and standpipes from potential vehicle impacts in areas subject to traffic. The formed steel plate is secured to concrete walls or columns using expansion anchors with embed depths coordinated to avoid internal reinforcing steel. Standard mounting heights are detailed at one foot three inches and two feet above the finished floor depending on location, such as at fire hose valves. The contractor provides protection plates wherever multiple utilities run adjacent to each other and require mechanical defense.
