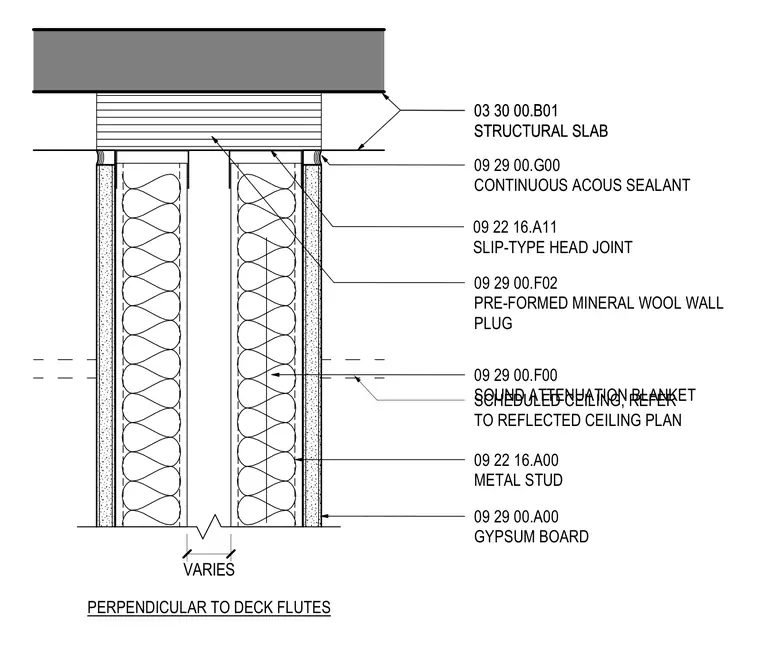

A slip-type head joint connects a cold-formed metal stud partition wall to an overhead structural concrete slab, positioned perpendicular to the deck flutes. The wall framing consists of metal studs faced with gypsum board on both sides, with sound attenuation blanket insulation filling the stud cavity. A pre-formed mineral wool wall plug fills the gap at the deck flutes above the slip-type head joint. Continuous acoustic sealant is applied at the perimeter joint between the gypsum board and the underside of the structural slab.
09 22 16.A11 SLIP-TYPE HEAD JOINT 03 30 00.B01 STRUCTURAL SLAB 09 29 00.F00 SOUND ATTENUATION BLANKET 09 22 16.A00 METAL STUD 09 29 00.A00 GYPSUM BOARD SCHEDULED CEILING, REFER TO REFLECTED CEILING PLAN 03 30 00.B01 STRUCTURAL SLAB 09 29 00.F02 PRE-FORMED MINERAL WOOL WALL PLUG PERPENDICULAR TO DECK FLUTES 09 29 00.G00 CONTINUOUS ACOUS SEALANT VARIES
