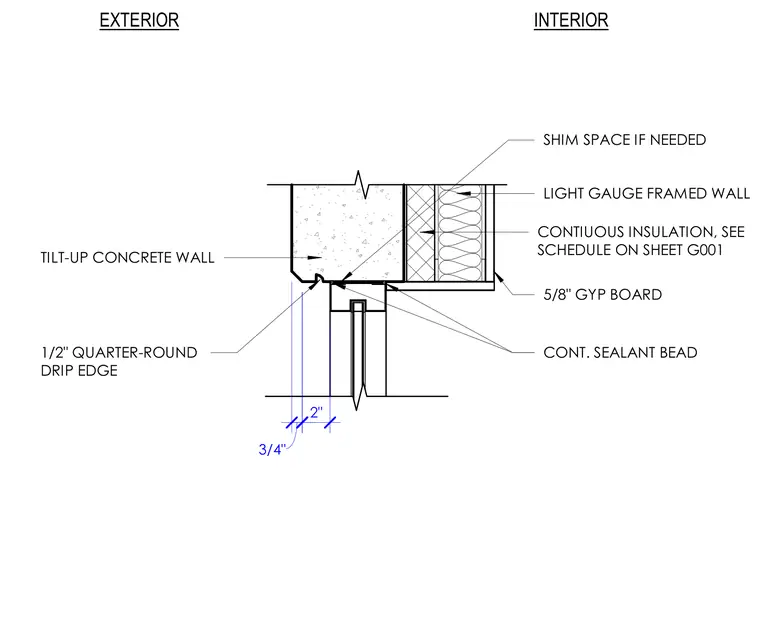

This window head detail shows a storefront system intersecting a tilt-up concrete wall panel with an exterior half-inch quarter-round drip edge. A continuous sealant bead seals the joint between the concrete panel and the window frame, with shim space provided as needed. The interior backing consists of a light-gauge framed wall finished with five-eighths-inch gypsum board and continuous insulation specified on sheet G001.
SHIM SPACE IF NEEDED TILT-UP CONCRETE WALL CONT. SEALANT BEAD LIGHT GAUGE FRAMED WALL 5/8" GYP BOARD CONTIUOUS INSULATION, SEE SCHEDULE ON SHEET G001 1/2" QUARTER-ROUND DRIP EDGE 3/4" 2" INTERIOR EXTERIOR
