Architectural · A-P23CN

Exit Door Jamb Detail at Concrete Tilt-Up Wall

Materials

Concrete Steel Cold-formed Steel Timber / Wood Gypsum / Drywall EIFS / Plaster / Stucco

Elements

About this detail

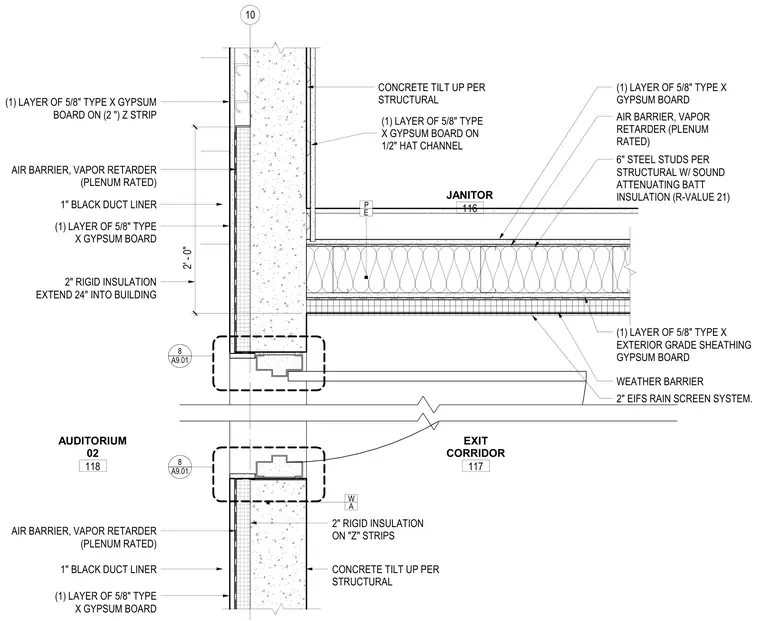

This wall section details an exit door transition within a concrete tilt-up wall assembly adjacent to an auditorium and exit corridor. The exterior features a two-inch EIFS rain screen system applied over a weather barrier, air barrier, vapor retarder, and exterior grade gypsum board sheathing. The interior side of the concrete tilt-up wall incorporates two-inch rigid insulation on Z-strips, an air barrier, vapor retarder, one-inch black duct liner, and a layer of five-eighths-inch Type X gypsum board. Interior partitions utilize six-inch steel studs with sound-attenuating batt insulation with an R-value of 21, finished with layers of five-eighths-inch Type X gypsum board on hat channels or Z-strips.
