A hollow metal frame and door sit directly above a finished concrete slab with a one-half inch maximum tolerance. A concrete wall extends vertically with a one-half inch typical concrete chamfer and a specified gasket. Flooring is provided per the finish schedule where applicable, and a threshold is installed when required.

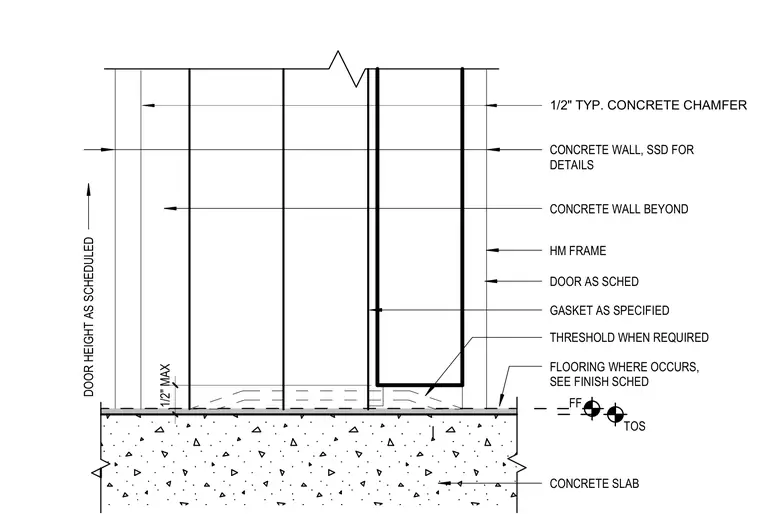

TOS CONCRETE SLAB FLOORING WHERE OCCURS, SEE FINISH SCHED DOOR AS SCHED HM FRAME DOOR HEIGHT AS SCHEDULED FF CONCRETE WALL, SSD FOR DETAILS THRESHOLD WHEN REQUIRED CONCRETE WALL BEYOND GASKET AS SPECIFIED 1/2" TYP. CONCRETE CHAMFER .1/2" MAX
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
