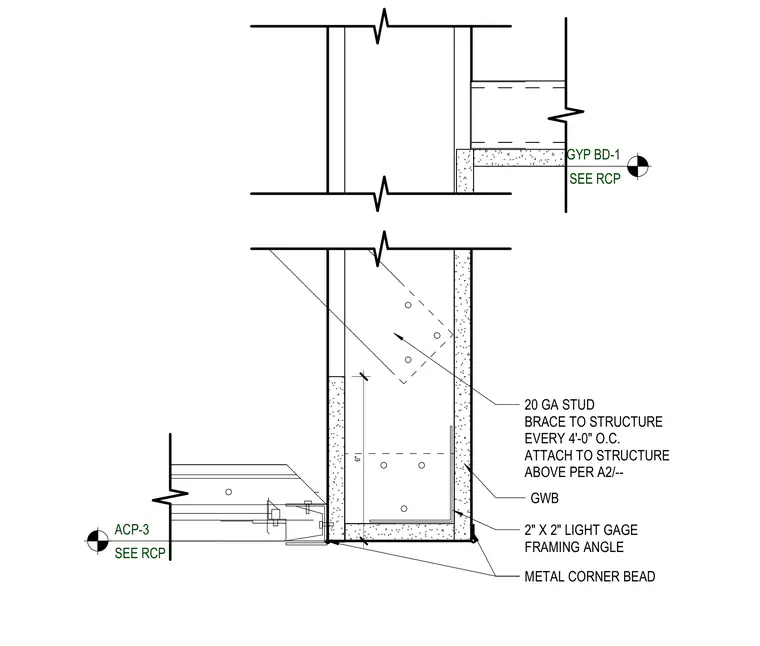

An acoustic ceiling panel designated ACP-3 terminates against a lower gypsum board ceiling bounded by a vertical bulkhead. The bulkhead features a twenty-gauge stud brace oriented diagonally to the structure above at four feet on center. A two-inch by two-inch light gauge framing angle supports the gypsum board corner with a metal corner bead at the outside edge.
ACP-3 SEE RCP GYP BD-1 SEE RCP 20 GA STUD BRACE TO STRUCTURE EVERY 4'-0" O.C. ATTACH TO STRUCTURE ABOVE PER A2/-- 2" X 2" LIGHT GAGE FRAMING ANGLE GWB METAL CORNER BEAD 6"
