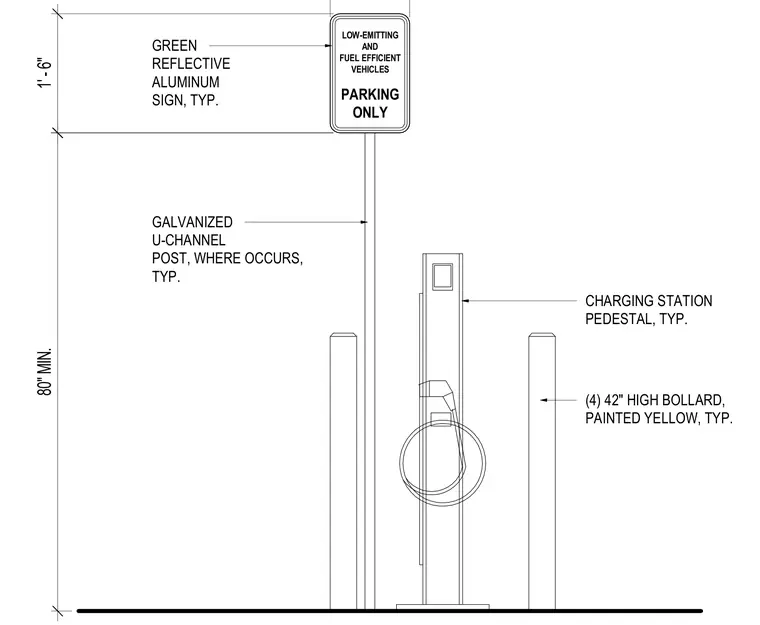

An electric vehicle charging station pedestal is flanked by four forty-two-inch high yellow-painted bollards for vehicular protection. A green reflective aluminum parking sign reading low-emitting and fuel-efficient vehicles parking only is mounted on a galvanized U-channel post at a minimum height of eighty inches. The sign height measures one foot six inches vertically.
LOW-EMITTING AND FUEL EFFICIENT VEHICLES PARKING ONLY 80" MIN. 1' - 6" GREEN REFLECTIVE ALUMINUM SIGN, TYP. GALVANIZED U-CHANNEL POST, WHERE OCCURS, TYP. CHARGING STATION PEDESTAL, TYP. (4) 42" HIGH BOLLARD, PAINTED YELLOW, TYP.
