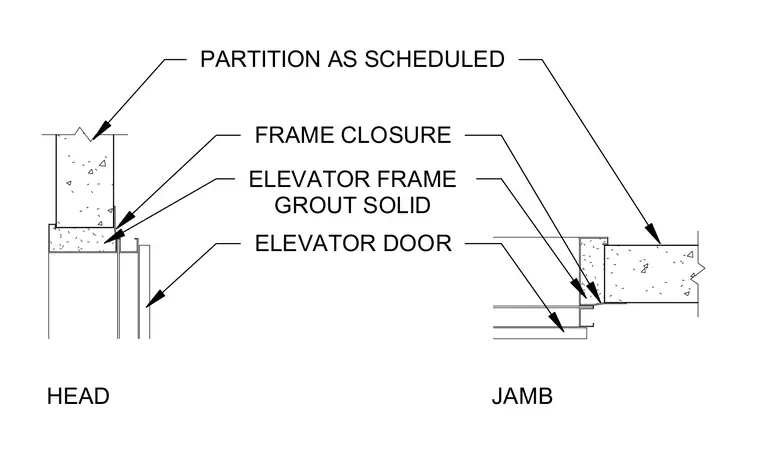

An elevator door frame is set adjacent to a partition as scheduled with a frame closure. The elevator frame is grouted solid for rigidity and fire resistance. The assembly transitions directly into the elevator door panel.
HEAD JAMB PARTITION AS SCHEDULED FRAME CLOSURE ELEVATOR FRAME GROUT SOLID ELEVATOR DOOR
