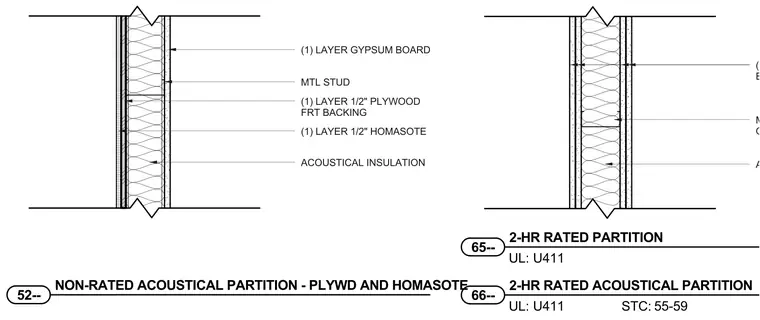

Metal stud framing forms the core of these partition assemblies, packed with acoustical insulation between the framing members. The non-rated acoustical partition features one layer of gypsum board on one side, and one layer of one-half inch fire-retardant treated plywood backing paired with one layer of one-half inch Homasote on the opposing side. The two-hour rated acoustical partition configuration utilizes two layers of gypsum board on each side over metal studs, conforming to Underwriters Laboratories design U411 with sound transmission class ratings.
ACOUSTICAL INSULATION AT (2) LAYERS GYPSUM BOARD EACH SIDE UL: STC: 66-- 2-HR RATED ACOUSTICAL PARTITION U411 55-59 UL: 65-- 2-HR RATED PARTITION U411 MTL STUD - (2 1/2" MIN @ 24" O.C. MAX) ACOUSTICAL INSULATION (1) LAYER GYPSUM BOARD MTL STUD (1) LAYER 1/2" PLYWOOD FRT BACKING (1) LAYER 1/2" HOMASOTE 52-- NON-RATED ACOUSTICAL PARTITION - PLYWD AND HOMASOTE
