Cabinet - Transaction Counter Reception

Materials

Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Walls Floors / Slabs Bracing Millwork / Casework

Connections

Bracing Connection

About this detail

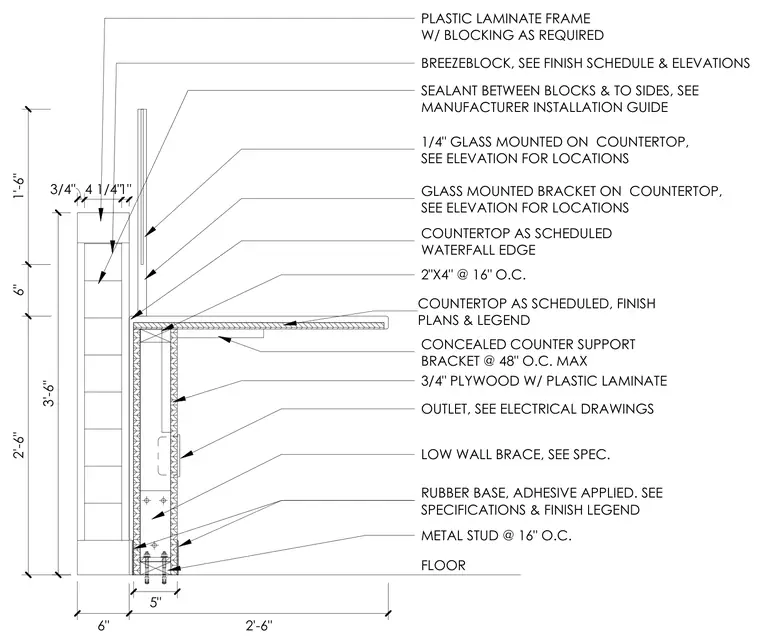

This transaction counter assembly is framed with metal studs spaced at sixteen inches on center, secured to the floor and braced with a low wall brace as specified. The countertop consists of three-quarter-inch plywood finished with plastic laminate and a waterfall edge, supported by concealed counter support brackets spaced at a maximum of forty-eight inches on center. A rubber base with adhesive is applied at the floor. In front of the counter, a breezeblock wall is built with plastic laminate framing and blocking, sealed between blocks and sides per the manufacturer installation guide. A quarter-inch glass panel is mounted on the countertop using glass-mounted brackets.
