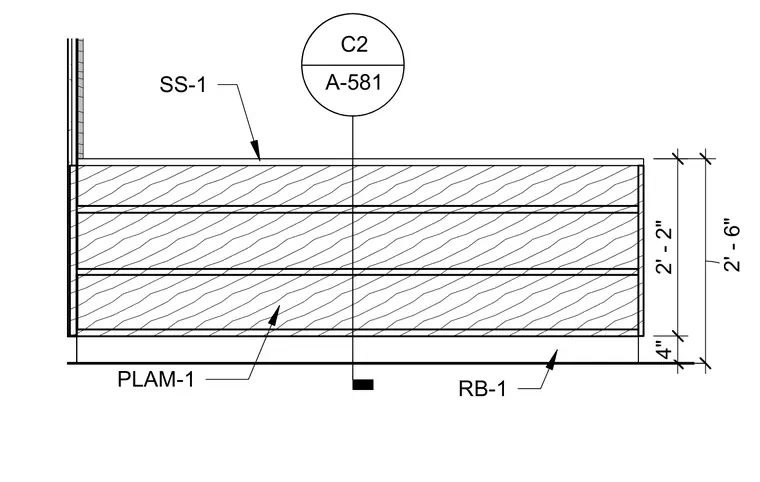

This interior millwork detail shows the vertical profile and material buildup of a custom desk front. The two foot six inch overall height includes a four inch high base component designated RB-1, a main body faced with plastic laminate designated PLAM-1, and a solid surface countertop designated SS-1. Vertical dimensions delineate the two foot two inch main body height stacked above the four inch base.
