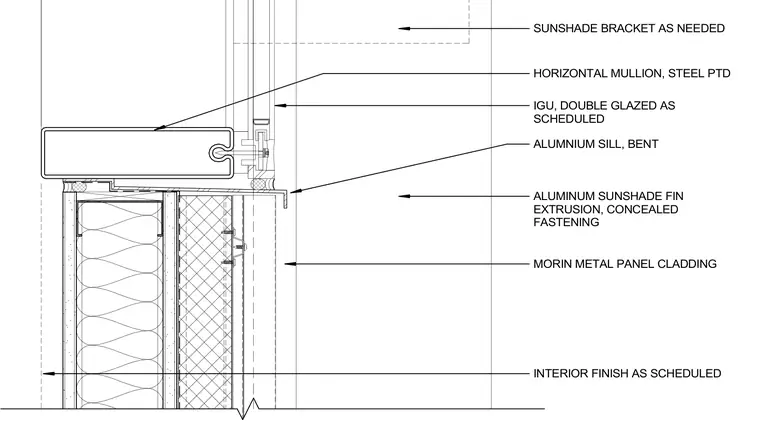

The assembly features a bent aluminum sill and an aluminum sunshade fin extrusion with concealed fastening anchored beneath a painted steel horizontal mullion. The double-glazed insulated glass unit sits above the sill. Below the storefront base, Morin metal panel cladding is installed over exterior framing and insulation, meeting the interior finish as scheduled.
INTERIOR FINISH AS SCHEDULED HORIZONTAL MULLION, STEEL PTD IGU, DOUBLE GLAZED AS SCHEDULED MORIN METAL PANEL CLADDING SUNSHADE BRACKET AS NEEDED ALUMNIUM SILL, BENT ALUMINUM SUNSHADE FIN EXTRUSION, CONCEALED FASTENING
