Elev. Door Head - Smoke Curtain Housing

Materials

Elements

About this detail

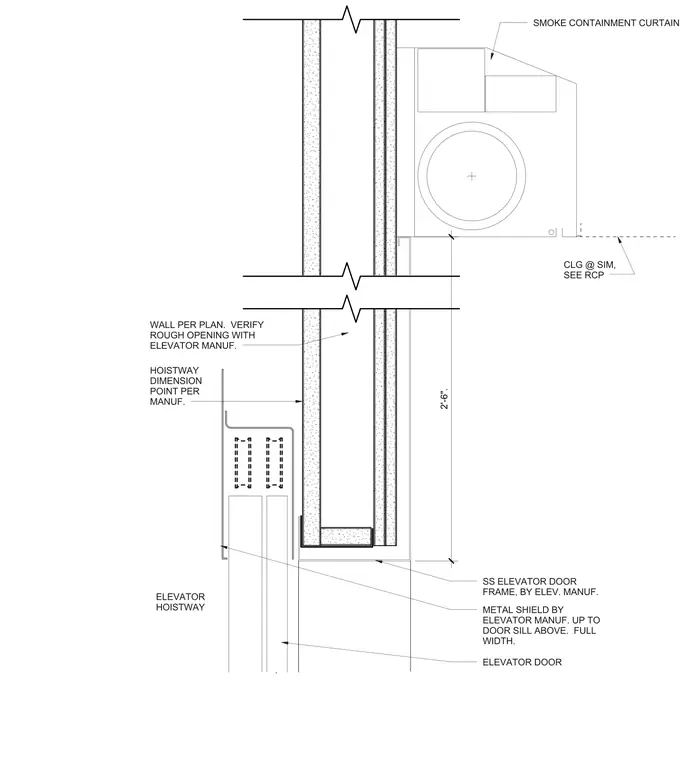

This assembly details the elevator door head condition integrated with a smoke containment curtain housing at the hoistway wall. The stainless steel elevator door frame and metal shield are provided by the elevator manufacturer, extending full width up to the door sill above. The adjacent wall is constructed per plan, requiring rough opening verification with the elevator manufacturer, and maintains a hoistway dimension of two feet six inches to the dimension point per manufacturer. A smoke containment curtain housing is located above the ceiling line, coordinated with the reflected ceiling plan.
