Wood ceiling panels require a backing wood strip or short piece of T-rail attached to the back of the panel with wood screws before cutting, executed by others rather than the wood ceiling manufacturer. Field-cut ends along the trim line receive a touch-up finish supplied by the ceiling manufacturer. Cut boards must not extend beyond six inches unsupported.

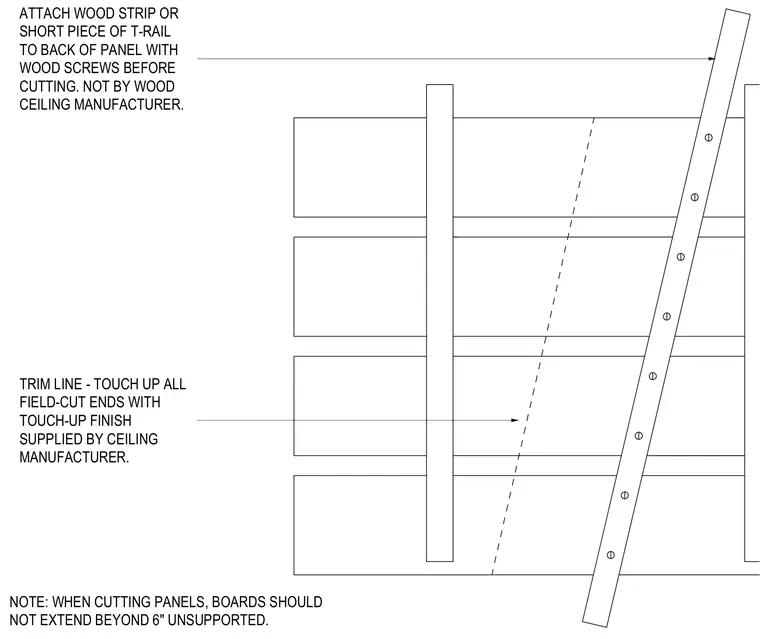

ATTACH WOOD STRIP OR SHORT PIECE OF T-RAIL TO BACK OF PANEL WITH WOOD SCREWS BEFORE CUTTING. NOT BY WOOD CEILING MANUFACTURER. TRIM LINE - TOUCH UP ALL FIELD-CUT ENDS WITH TOUCH-UP FINISH SUPPLIED BY CEILING MANUFACTURER. NOTE: WHEN CUTTING PANELS, BOARDS SHOULD NOT EXTEND BEYOND 6" UNSUPPORTED.
