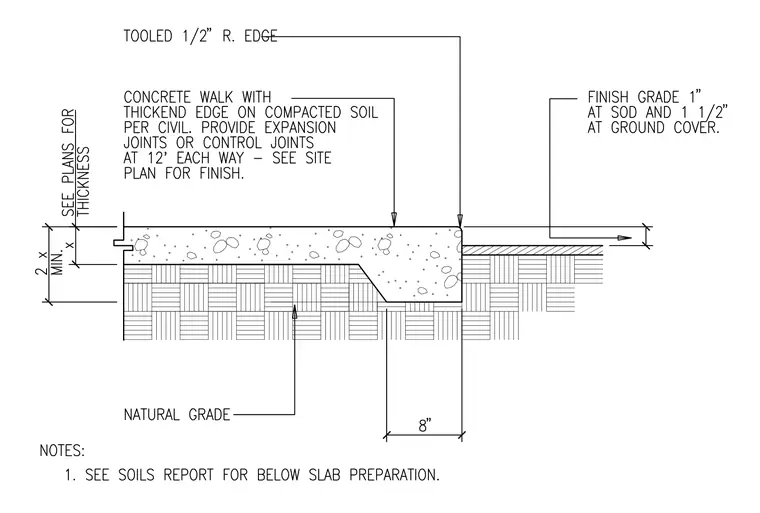

This concrete walk assembly features a thickened edge resting on compacted soil over natural grade. The slab includes a tooled half-inch radius edge and requires expansion or control joints at twelve feet each way. Finish grade sits one inch below the walk at sod and one and a half inches at ground cover. Below slab preparation must comply with the soils report.
