An interior partition wall assembly is framed with eight-inch metal studs spaced per structural drawings. Sound attenuation batt insulation fills the stud cavity to reduce acoustic transfer. Each side of the partition is clad with five-eighths-inch Type-X gypsum board. The wall finish is applied directly over the gypsum board according to the finish schedule.

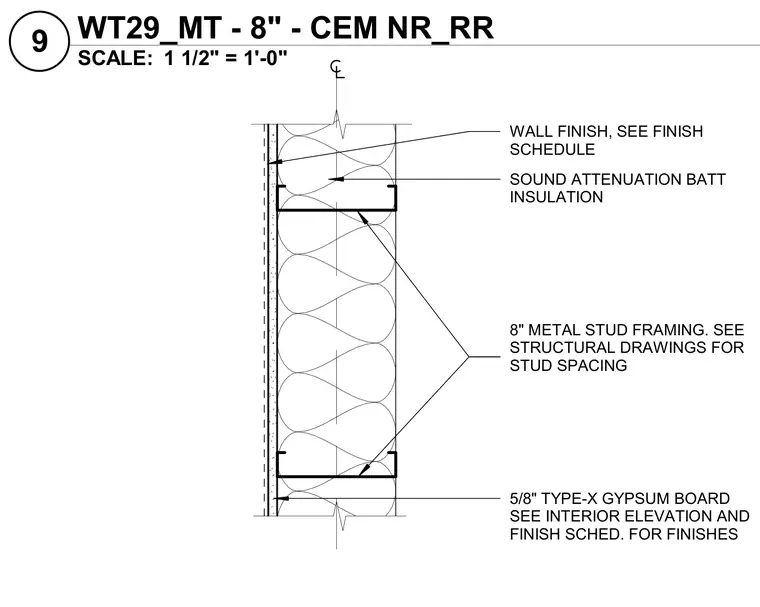

8" METAL STUD FRAMING. SEE STRUCTURAL DRAWINGS FOR STUD SPACING 5/8" TYPE-X GYPSUM BOARD SEE INTERIOR ELEVATION AND FINISH SCHED. FOR FINISHES SOUND ATTENUATION BATT INSULATION WALL FINISH, SEE FINISH SCHEDULE SCALE: 1 1/2" = 1'-0" 9 WT29_MT - 8" - CEM NR_RR
