Architectural · A-NXGV4

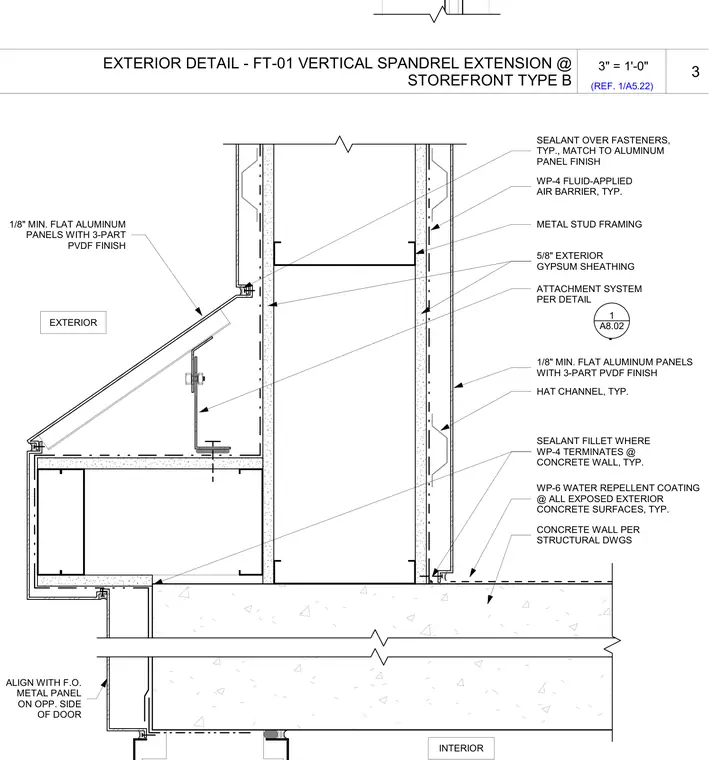

Exterior Detail - FT-01 Vertical Spandrel Extension at Storefront Type B

Materials

Concrete Steel Cold-formed Steel Timber / Wood Aluminum Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Doors Storefronts Facades / Cladding

About this detail

Vertical spandrel extension at a Type B storefront, comprising a concrete structural wall waterproofed with WP-6 water repellent coating and WP-4 fluid-applied air barrier. The exterior finish consists of 1/8 inch minimum flat aluminum panels with a three-part PVDF finish mounted on hat channels and attachment systems per detail A8.02. The backup framing comprises cold-formed metal stud framing with 5/8 inch exterior gypsum sheathing. Sealant fillets are applied where the air barrier terminates at the concrete wall, and fasteners are finished with matching sealant.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
