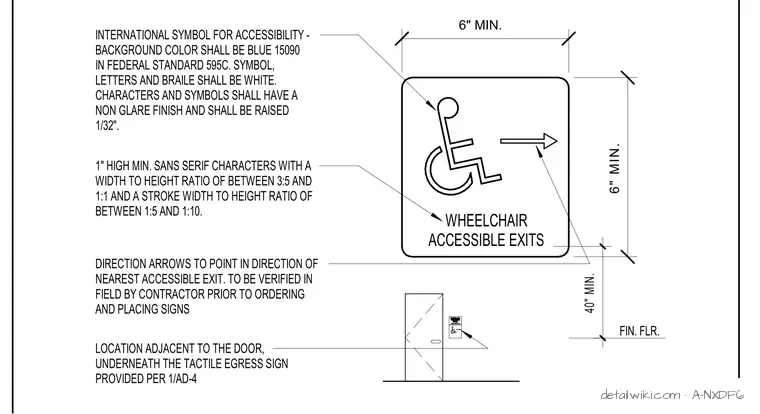

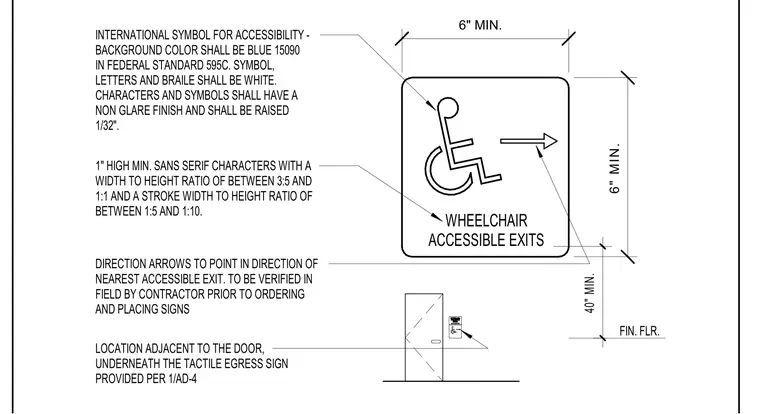

The accessible exit directional sign features a blue background with white symbols, letters, and Braille, all finished with a non-glare surface. Characters and symbols are raised one thirty-second of an inch, with sans serif characters at least one inch high. The sign must be mounted with the bottom of the lowest visual character at least forty inches above the finished floor. It is positioned adjacent to the latch side of a single door or the right side of double doors, located directly underneath the tactile egress sign provided per detail 1/AD-4. The contractor must verify the direction of the nearest accessible exit in the field prior to ordering and installation.
Text on the drawing
NOTES: 1. THE SIGN SHALL COMPLY WITH CBC SECTIONS 1009.10. 2. THE SIGN SHALL COMPLY WITH CBC SECTIONS CHAPTER 11B SECTIONS 11B-703.1, 11B-703.3 AND 11B703.5 DIVISION 7. AND 1011 CBC. 3. THE SIGN SHALL BE LOCATED ADJACENT TO THE LATCH SIDE OF A SINGLE DOOR AND RIGHT SIDE OF DOUBLE DOORS 40" MIN. A.F.F. TO BOTTOM OF LOWEST VISUAL CHARACTER. A PERSON SHALL BE ABLE TO APPROACH WITHIN 3" OF THE SIGN WITHOUT ENCOUNTERING A PROTRUDING OBJECT OR BE WITHIN THE SWING OF THE DOOR PER CBC INTERNATIONAL SYMBOL FOR ACCESSIBILITY - BACKGROUND COLOR SHALL BE BLUE 15090 IN FEDERAL STANDARD 595C. SYMBOL, LETTERS AND BRAILE SHALL BE WHITE. CHARACTERS AND SYMBOLS SHALL HAVE A NON GLARE FINISH AND SHALL BE RAISED 1/32". 1" HIGH MIN. SANS SERIF CHARACTERS WITH A WIDTH TO HEIGHT RATIO OF BETWEEN 3:5 AND 1:1 AND A STROKE WIDTH TO HEIGHT RATIO OF BETWEEN 1:5 AND 1:10. DIRECTION ARROWS TO POINT IN DIRECTION OF NEAREST ACCESSIBLE EXIT. TO BE VERIFIED IN FIELD BY CONTRACTOR PRIOR TO ORDERING AND PLACING SIGNS LOCATION ADJACENT TO THE DOOR, UNDERNEATH THE TACTILE EGRESS SIGN PROVIDED PER 1/AD-4 FIN. FLR. WHEELCHAIR ACCESSIBLE EXITS 40" MIN. 6" MIN. 6" MIN. 1/2" = 1'-0" 7
