Architectural · A-NXD8N

Interior Bridge Section with Steel Framing and Concrete Topping Slab

Materials

Concrete Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

About this detail

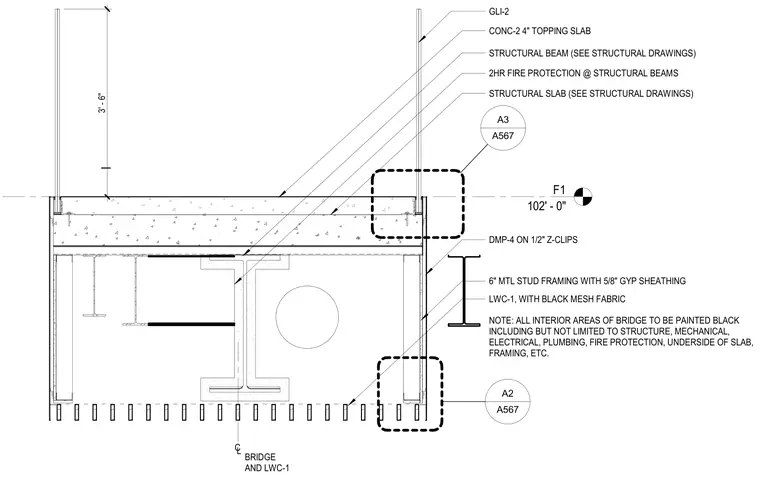

A bridge cross section features a four-inch lightweight concrete topping slab over a structural slab and structural beams. The structural steel beams are protected with a two-hour fireproofing application. Interior walls consist of six-inch metal stud framing with five-inch gypsum sheathing, finished with DMP-4 on one-half-inch Z-clips and LWC-1 with black mesh fabric. All interior areas of the bridge, including structure, mechanical, electrical, plumbing, fire protection, underside of slab, and framing, are to be painted black.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
