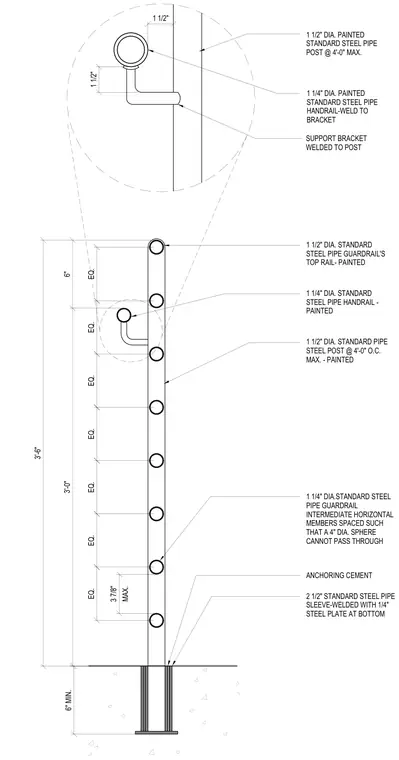

A painted steel pipe guardrail and handrail assembly stands three feet six inches high, with posts spaced at four feet on center maximum. The system comprises one-and-a-half-inch diameter standard steel pipe posts and top rail, one-quarter-inch diameter intermediate horizontal members spaced evenly so that a four-inch diameter sphere cannot pass through, and a separate one-and-a-quarter-inch diameter handrail mounted on a support bracket welded to the post. The posts anchor into two-and-a-half-inch diameter standard steel pipe sleeves welded with a one-quarter-inch steel plate at the bottom, secured with anchoring cement.
6" MIN. EQ. EQ. EQ. EQ. EQ. EQ. EQ. 3'-6" 6" 3'-0" 3 7/8" MAX. 1 1/2" 1 1/2" 2 1/2" STANDARD STEEL PIPE SLEEVE-WELDED WITH 1/4" STEEL PLATE AT BOTTOM ANCHORING CEMENT 1 1/2" DIA. PAINTED STANDARD STEEL PIPE POST @ 4'-0" MAX. 1 1/4" DIA. PAINTED STANDARD STEEL PIPE HANDRAIL-WELD TO BRACKET SUPPORT BRACKET WELDED TO POST 1 1/4" DIA. STANDARD STEEL PIPE HANDRAIL - PAINTED 1 1/4" DIA.STANDARD STEEL PIPE GUARDRAIL INTERMEDIATE HORIZONTAL MEMBERS SPACED SUCH THAT A 4" DIA. SPHERE CANNOT PASS THROUGH 1 1/2" DIA. STANDARD PIPE STEEL POST @ 4'-0" O.C. MAX. - PAINTED 1 1/2" DIA. STANDARD STEEL PIPE GUARDRAIL'S TOP RAIL- PAINTED
