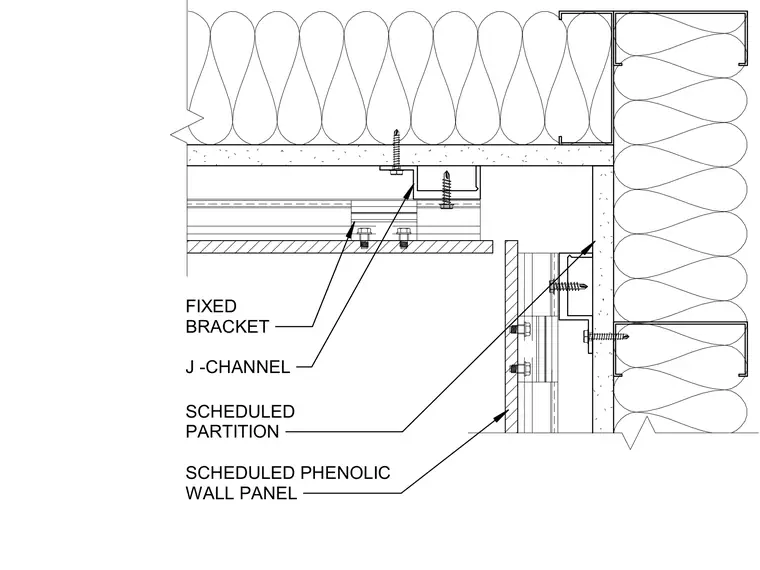

Scheduled phenolic wall panels meet at an inside corner using J-channels and fixed brackets anchored to scheduled interior partitions. Fasteners secure the mounting hardware and panels to the wall framing.
