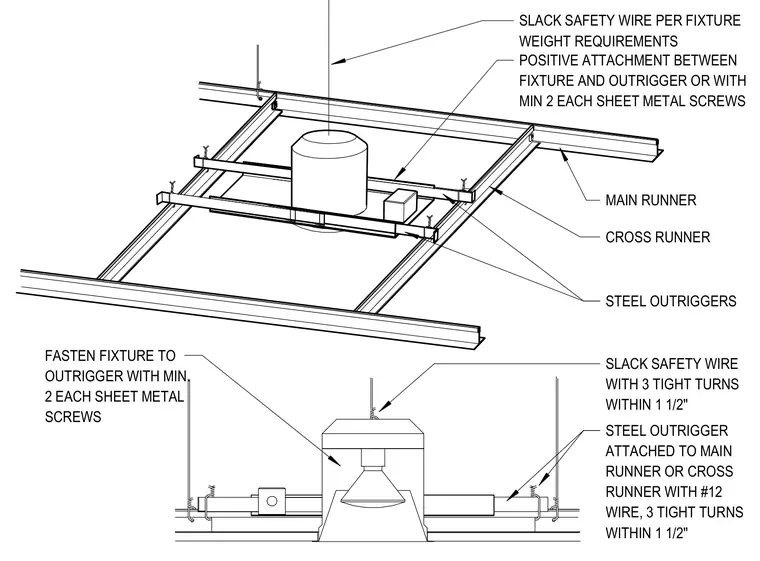

A light fixture is installed within a suspended acoustical ceiling grid supported by main runners and cross runners. Steel outriggers span across the grid members to carry the fixture weight and are attached with number twelve wire featuring three tight turns within one and a half inches. The fixture is positively attached to the outriggers using a minimum of two sheet metal screws on each side. A slack safety wire sized per fixture weight requirements is anchored independently with three tight turns within one and a half inches.
MAIN RUNNER CROSS RUNNER STEEL OUTRIGGERS POSITIVE ATTACHMENT BETWEEN FIXTURE AND OUTRIGGER OR WITH MIN 2 EACH SHEET METAL SCREWS SLACK SAFETY WIRE PER FIXTURE WEIGHT REQUIREMENTS FASTEN FIXTURE TO OUTRIGGER WITH MIN. 2 EACH SHEET METAL SCREWS STEEL OUTRIGGER ATTACHED TO MAIN RUNNER OR CROSS RUNNER WITH #12 WIRE, 3 TIGHT TURNS WITHIN 1 1/2" SLACK SAFETY WIRE WITH 3 TIGHT TURNS WITHIN 1 1/2"
