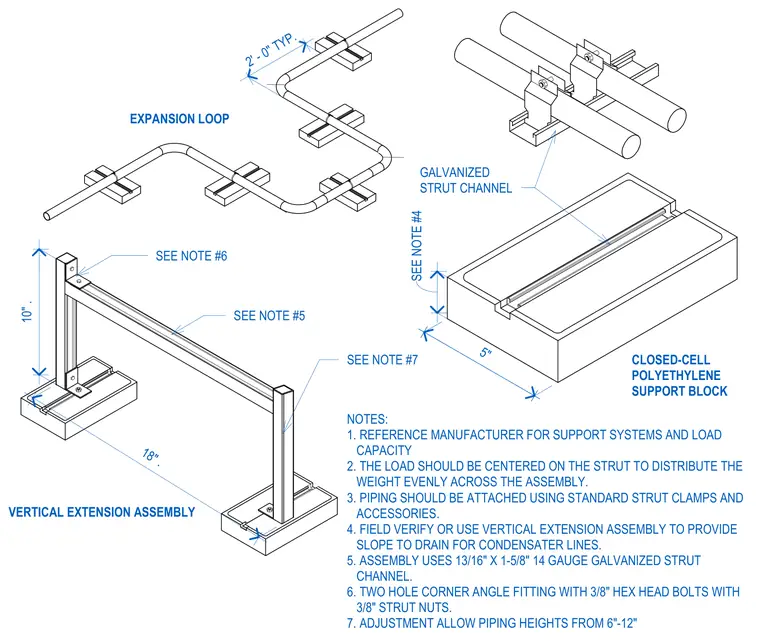

An exterior rooftop pipe support and vertical extension assembly utilizes a closed-cell polyethylene support block and a thirteen-sixteenths by one-and-five-eighths-inch fourteen-gauge galvanized strut channel. Piping is secured to the strut using standard strut clamps and accessories, with loads centered on the strut to distribute weight evenly across the assembly. Two-hole corner angle fittings with three-eighths-inch hex head bolts and three-eighths-inch strut nuts connect the vertical extension framing, allowing adjustable piping heights from six to twelve inches. Field verification or the vertical extension assembly is used to provide slope to drain for condensate lines, alongside an expansion loop spaced at typical two-foot intervals.
5" SEE NOTE #4 10" . 18" . 2' - 0" TYP. GALVANIZED STRUT CHANNEL SEE NOTE #6 SEE NOTE #5 SEE NOTE #7 EXPANSION LOOP CLOSED-CELL POLYETHYLENE SUPPORT BLOCK VERTICAL EXTENSION ASSEMBLY 1. 2. 3. 4. 5. 6. 7. NOTES: REFERENCE MANUFACTURER FOR SUPPORT SYSTEMS AND LOAD CAPACITY THE LOAD SHOULD BE CENTERED ON THE STRUT TO DISTRIBUTE THE WEIGHT EVENLY ACROSS THE ASSEMBLY. PIPING SHOULD BE ATTACHED USING STANDARD STRUT CLAMPS AND ACCESSORIES. FIELD VERIFY OR USE VERTICAL EXTENSION ASSEMBLY TO PROVIDE SLOPE TO DRAIN FOR CONDENSATER LINES. ASSEMBLY USES 13/16" X 1-5/8" 14 GAUGE GALVANIZED STRUT CHANNEL. TWO HOLE CORNER ANGLE FITTING WITH 3/8" HEX HEAD BOLTS WITH 3/8" STRUT NUTS. ADJUSTMENT ALLOW PIPING HEIGHTS FROM 6"-12"
