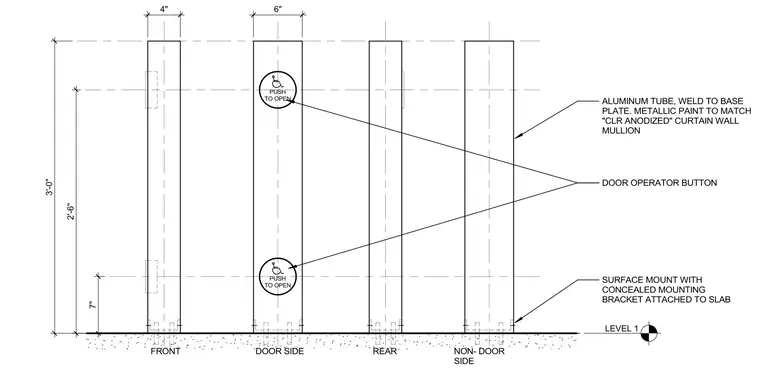

An aluminum tube bollard is welded to a base plate and finished with metallic paint matching the clear anodized curtain wall mullion. The assembly stands three feet high with front, door side, rear, and non-door side elevations shown. Door operator buttons featuring a push to open handicap symbol are mounted on the tube at seven inches and two feet six inches above Level 1. The bollard is surface mounted using a concealed mounting bracket attached to the floor slab.
6" 4" FRONT DOOR SIDE REAR NON- DOOR SIDE ALUMINUM TUBE, WELD TO BASE PLATE. METALLIC PAINT TO MATCH "CLR ANODIZED" CURTAIN WALL MULLION DOOR OPERATOR BUTTON PUSH TO OPEN PUSH TO OPEN LEVEL 1 7" 2'-6" 3'-0" SURFACE MOUNT WITH CONCEALED MOUNTING BRACKET ATTACHED TO SLAB
