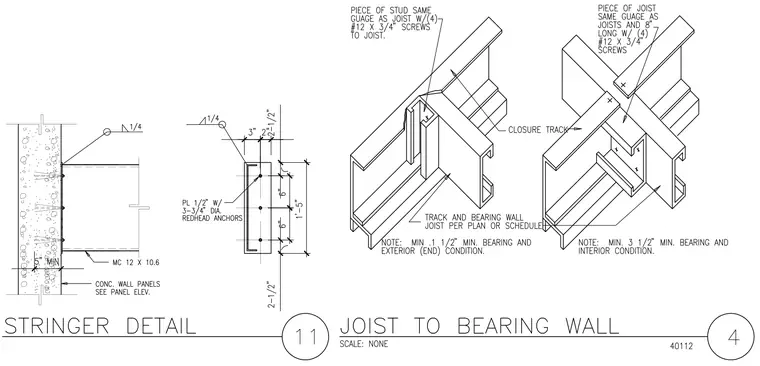

A channel stringer connects to a concrete wall panel using a one-half-inch plate secured with three three-quarter-inch diameter Redhead anchors and a quarter-inch weld. Cold-formed steel joist to bearing wall framing utilizes a closure track, bearing wall joists sized per plan or schedule, and connector plates of the same gauge as the joists secured with four number twelve by three-quarter-inch screws. Exterior and interior conditions maintain minimum bearing lengths of three and one-half inches.
