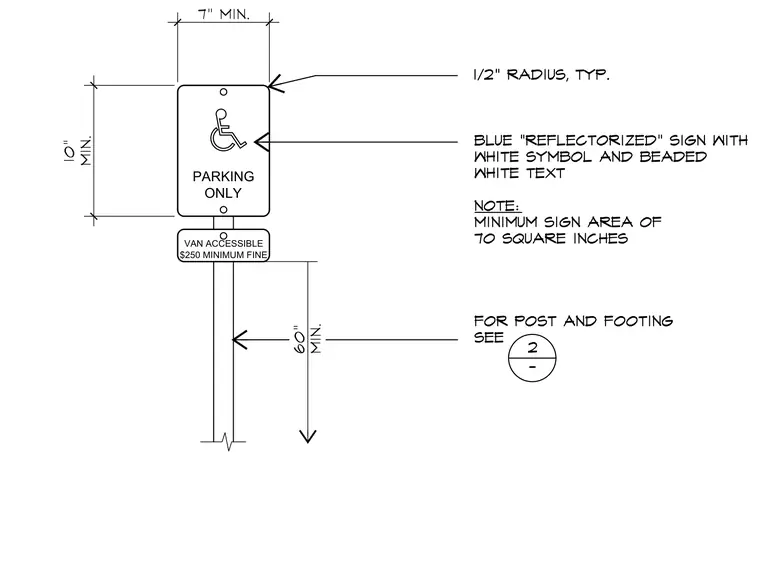

An accessible van parking sign assembly features a blue reflectorized sign with a white symbol and beaded white text measuring seven inches minimum in width and ten inches minimum in height with one-half inch typical radius corners. A supplementary van accessible plaque indicating a two hundred fifty dollar minimum fine mounts directly beneath the primary sign. The assembly maintains a sixty inch minimum clearance from the ground to the bottom of the sign. The sign requires a minimum sign area of seventy square inches. The mounting post and footing details are referenced separately on the drawings.
