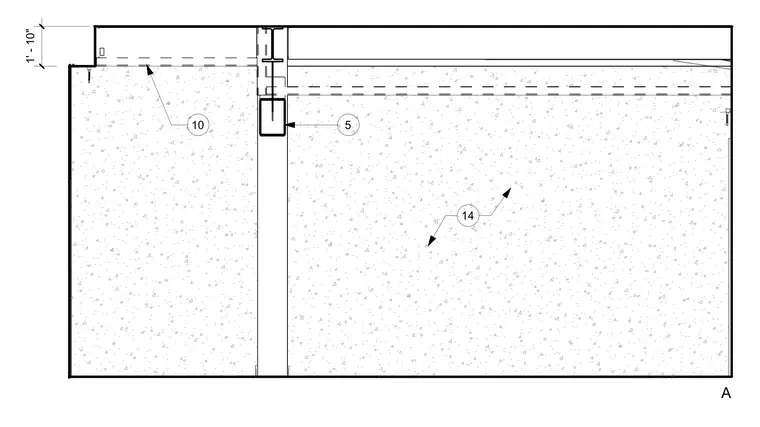

A structural steel beam is positioned within a concrete wall assembly, featuring a vertical dimension of 1 foot 10 inches along the edge. The detail coordinates the intersection between the concrete wall and the steel framing members using standard callout markers.
