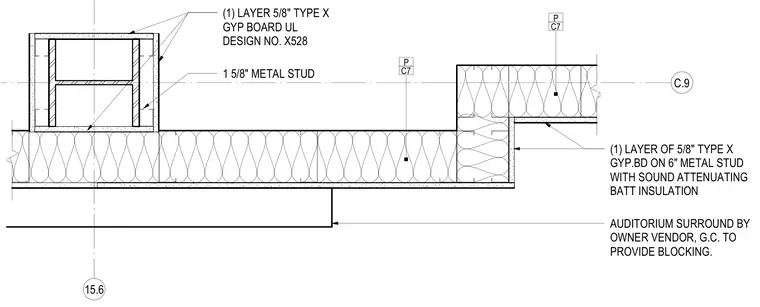

This wall detail shows an auditorium entry surround constructed with one layer of 5/8-inch Type X gypsum board over 1-5/8-inch metal studs complying with UL Design No. X528. The adjacent wall assembly utilizes a 6-inch metal stud partition filled with sound attenuating batt insulation and faced with one layer of 5/8-inch Type X gypsum board. General contractor blocking and owner vendor auditorium surround scopes are indicated.
15.6 C.9 (1) LAYER OF 5/8" TYPE X GYP.BD ON 6" METAL STUD WITH SOUND ATTENUATING BATT INSULATION C7 P C7 P AUDITORIUM SURROUND BY OWNER VENDOR, G.C. TO PROVIDE BLOCKING. (1) LAYER 5/8" TYPE X GYP BOARD UL DESIGN NO. X528 1 5/8" METAL STUD
