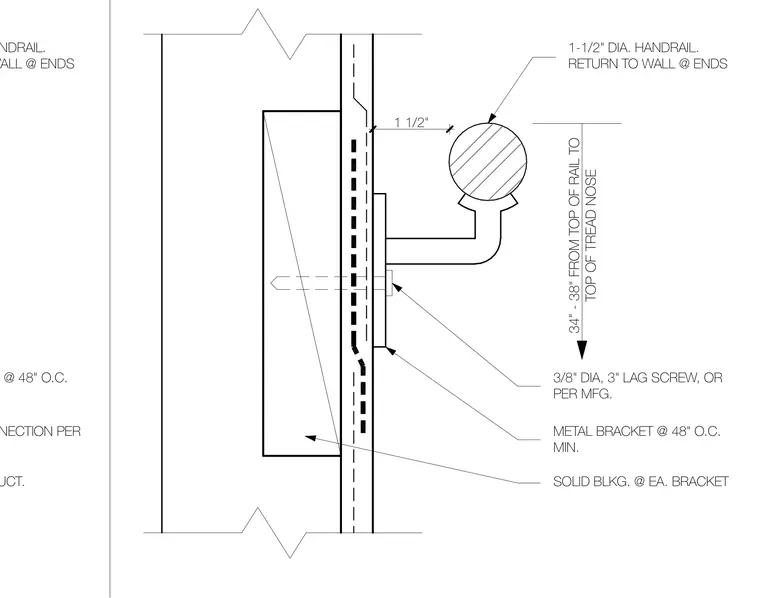

A one-and-a-half-inch diameter handrail returns to the wall at ends and mounts to a metal bracket spaced at forty-eight inches on center maximum. The bracket is fastened to the wall using three-eighths-inch diameter by three-inch lag screws anchored into minimum solid blocking at each bracket location. The top of the rail is positioned thirty-four to thirty-eight inches above the tread nose with a one-and-a-half-inch clearance from the wall surface.
1-1/2" DIA. HANDRAIL. RETURN TO WALL @ ENDS PLATE AND CONNECTION PER CONC. PER STRUCT. METAL BRACKET @ 48" O.C. 1 1/2" 34" - 38" FROM TOP OF RAIL TO TOP OF TREAD NOSE 1-1/2" DIA. HANDRAIL. RETURN TO WALL @ ENDS METAL BRACKET @ 48" O.C. MIN. SOLID BLKG. @ EA. BRACKET 3/8" DIA, 3" LAG SCREW, OR PER MFG.
