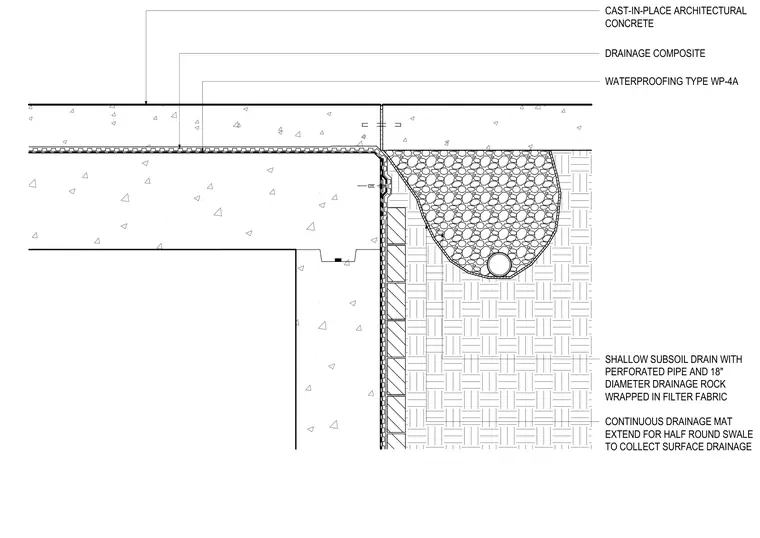

A shallow subsoil drain sits adjacent to a cast-in-place architectural concrete wall, featuring a perforated pipe embedded in an eighteen-inch diameter bed of drainage rock wrapped in filter fabric. A continuous drainage mat extends for a half-round swale to collect surface drainage, placed over waterproofing type WP-4A and a drainage composite applied to the exterior concrete wall.
SHALLOW SUBSOIL DRAIN WITH PERFORATED PIPE AND 18" DIAMETER DRAINAGE ROCK WRAPPED IN FILTER FABRIC CONTINUOUS DRAINAGE MAT EXTEND FOR HALF ROUND SWALE TO COLLECT SURFACE DRAINAGE WATERPROOFING TYPE WP-4A DRAINAGE COMPOSITE CAST-IN-PLACE ARCHITECTURAL CONCRETE
