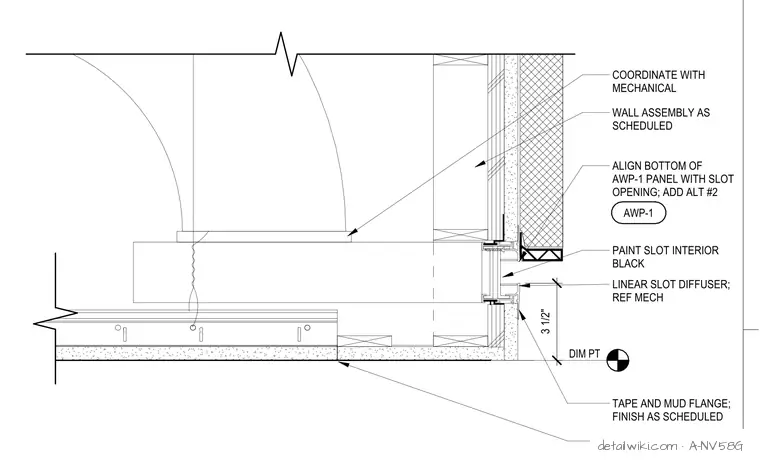

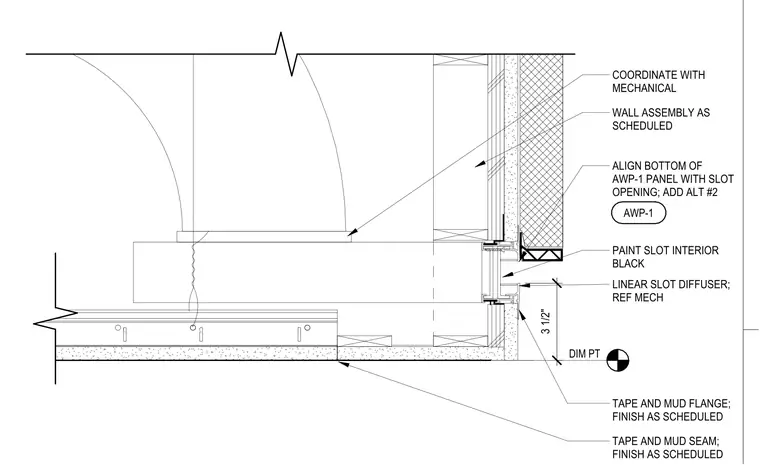

This assembly integrates a linear slot diffuser into a gypsum wall system, requiring coordination with mechanical drawings for the specific diffuser unit. The diffuser is installed with a three and one-half inch vertical clearance, and the slot interior is specified to be painted black. The diffuser flange is taped and mudded into the gypsum board to create a seamless finish, with seams finished as scheduled. The AWP-1 panel is aligned with the slot opening, and the entire wall assembly is constructed as scheduled.
