The cabinet assembly features a door with a bottom pull as specified and an integrated LED light fixture positioned underneath. Exposed end cabinets return the finished edge while the fascia finish maintains a seamless appearance. A vertical clearance of one and one-half inches is maintained at the base.

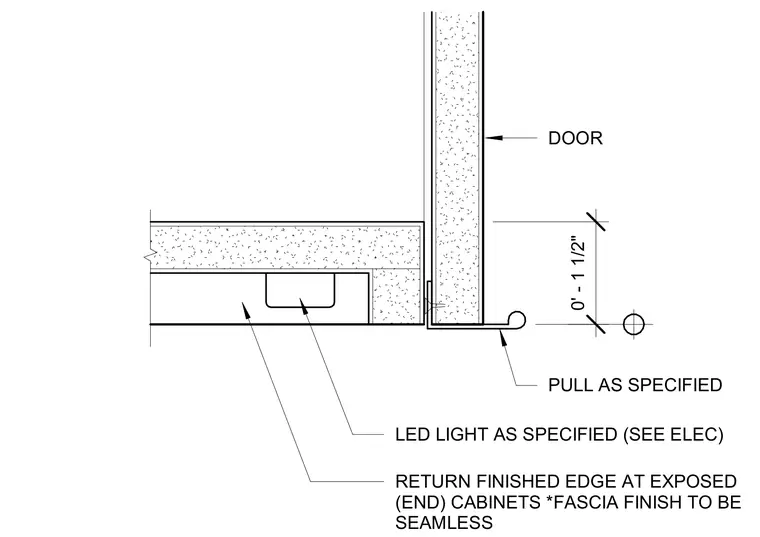

DOOR LED LIGHT AS SPECIFIED (SEE ELEC) RETURN FINISHED EDGE AT EXPOSED (END) CABINETS *FASCIA FINISH TO BE SEAMLESS PULL AS SPECIFIED 0' - 1 1/2"
