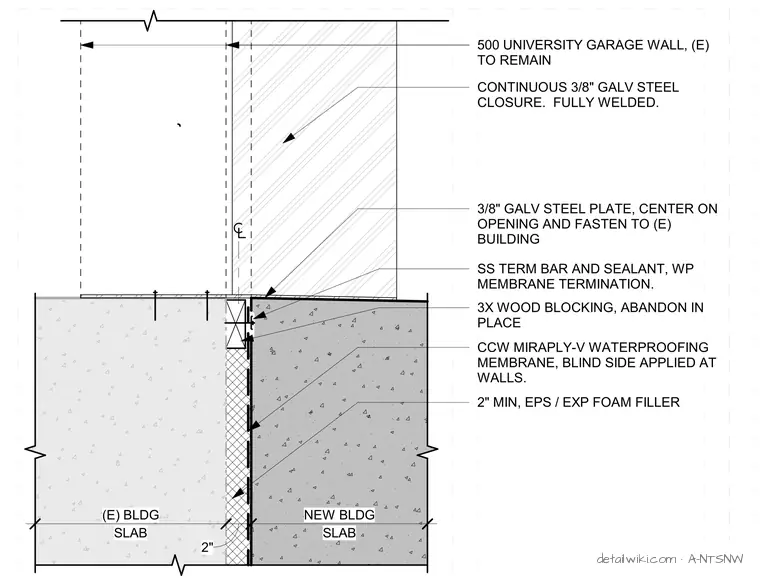

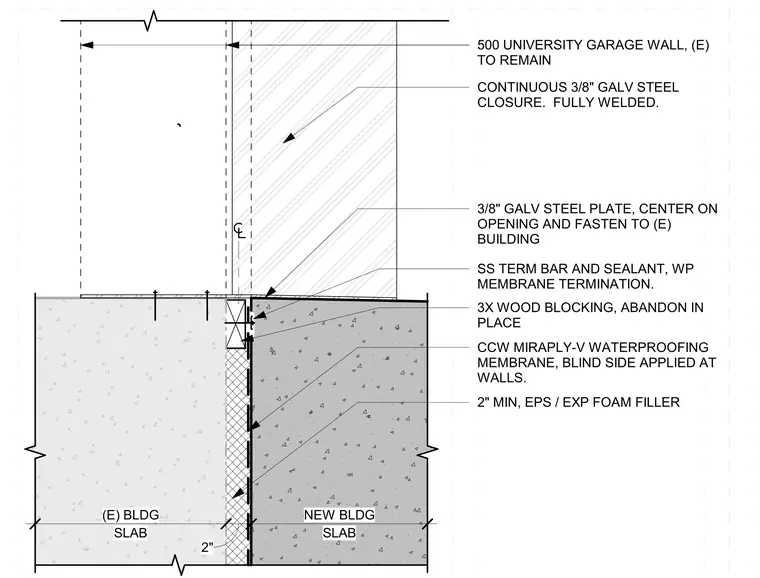

An expansion joint spans a two-inch minimum gap between the existing building slab and the new building slab, incorporating extruded polystyrene expansion foam filler. A blind-side applied waterproofing membrane lines the joint, secured at the new building edge with a stainless steel termination bar and sealant over abandoned-in-place three-by wood blocking. A continuous three-eighths-inch galvanized steel plate centers over the opening and fastens to the existing building. A continuous three-eighths-inch fully welded galvanized steel closure plate spans the sill at the existing university garage wall to remain.
500 UNIVERSITY GARAGE WALL, (E) TO REMAIN 2" MIN, EPS / EXP FOAM FILLER CCW MIRAPLY-V WATERPROOFING MEMBRANE, BLIND SIDE APPLIED AT WALLS. CONTINUOUS 3/8" GALV STEEL CLOSURE. FULLY WELDED. SLAB (E) BLDG 2" SLAB NEW BLDG 3/8" GALV STEEL PLATE, CENTER ON OPENING AND FASTEN TO (E) BUILDING 3X WOOD BLOCKING, ABANDON IN PLACE SS TERM BAR AND SEALANT, WP MEMBRANE TERMINATION.
