Markerboard attachment conditions occur at both concrete masonry unit and framed stud walls. The top of the assembly utilizes a mounting angle secured with three-eighths-inch diameter by two-inch embedment Hilti KB-3 anchors spaced at sixteen inches on center at CMU walls, paired with a map rail. The base includes an extruded aluminum markerboard tray secured with number ten sheet metal screws at sixteen inches on center for metal studs, or quarter-inch wood self-drilling screws at sixteen inches on center for wood studs. A backing track is provided per plan with fasteners spaced four inches maximum from ends. The total height dimension is four feet between the mounting conditions.

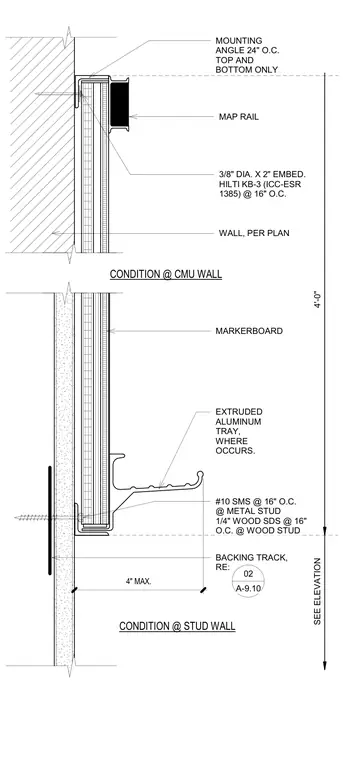

. . BACKING TRACK, RE: WALL, PER PLAN MAP RAIL MOUNTING ANGLE 24" O.C. TOP AND BOTTOM ONLY MARKERBOARD EXTRUDED ALUMINUM TRAY, WHERE OCCURS. 4'-0" CONDITION @ STUD WALL CONDITION @ CMU WALL SEE ELEVATION 3/8" DIA. X 2" EMBED. HILTI KB-3 (ICC-ESR 1385) @ 16" O.C. 4" MAX. #10 SMS @ 16" O.C. @ METAL STUD 1/4" WOOD SDS @ 16" O.C. @ WOOD STUD 02 A-9.10
