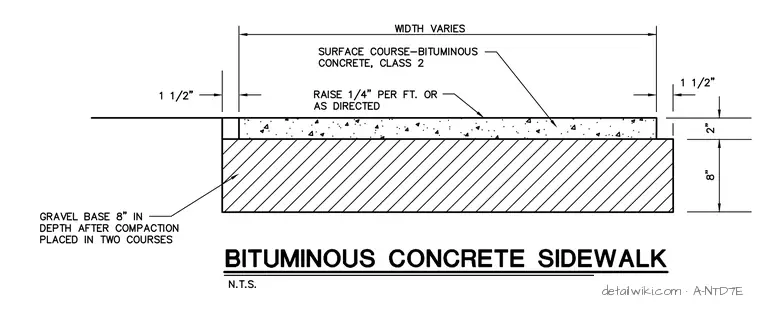

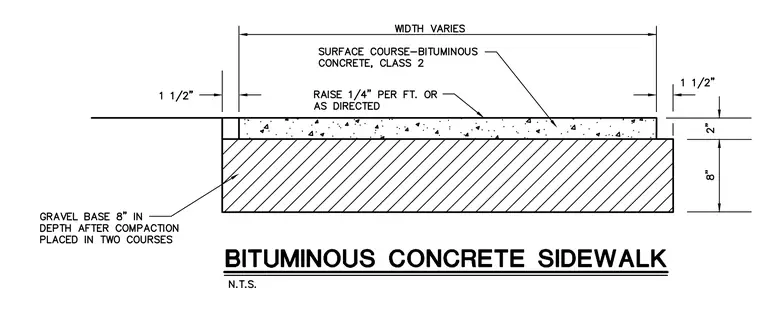

This sidewalk section consists of a two-inch Class 2 bituminous concrete surface course placed over an eight-inch gravel base compacted in two courses. The surface slopes upward at one-quarter inch per foot or as directed, with a width that varies and a one-and-one-half-inch edge overhang.
