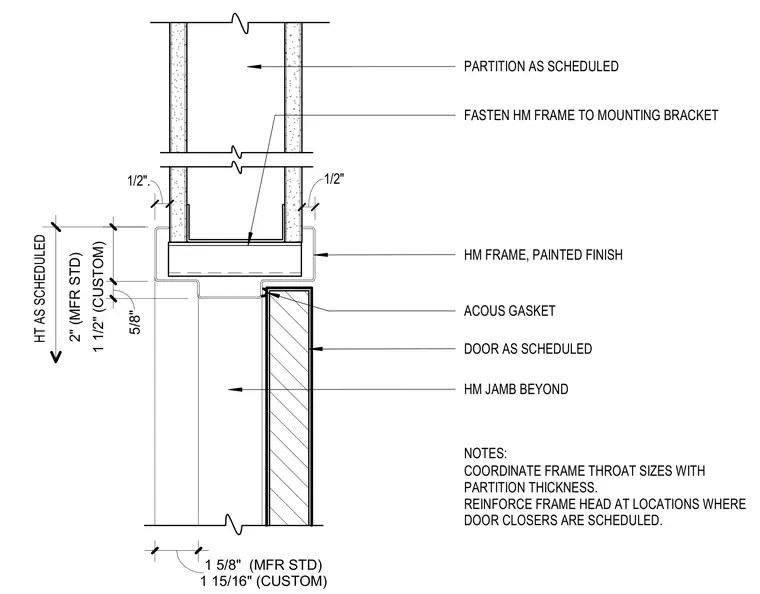

A hollow metal frame with a painted finish is fastened to a mounting bracket at the partition head. An acoustic gasket is installed at the door head interface. The partition thickness coordinates with the frame throat sizes, ranging from one and one-half inches custom to two inches manufacturer standard. The frame head requires reinforcement at locations where door closers are scheduled.
ACOUS GASKET COORDINATE FRAME THROAT SIZES WITH PARTITION THICKNESS. REINFORCE FRAME HEAD AT LOCATIONS WHERE DOOR CLOSERS ARE SCHEDULED. HM JAMB BEYOND NOTES: DOOR AS SCHEDULED PARTITION AS SCHEDULED HM FRAME, PAINTED FINISH 1 15/16" (CUSTOM) 1 5/8" (MFR STD) 1 1/2" (CUSTOM) 2" (MFR STD) 5/8" HT AS SCHEDULED FASTEN HM FRAME TO MOUNTING BRACKET 1/2". 1/2" 'V AVH \ \ i N V A +-T+
