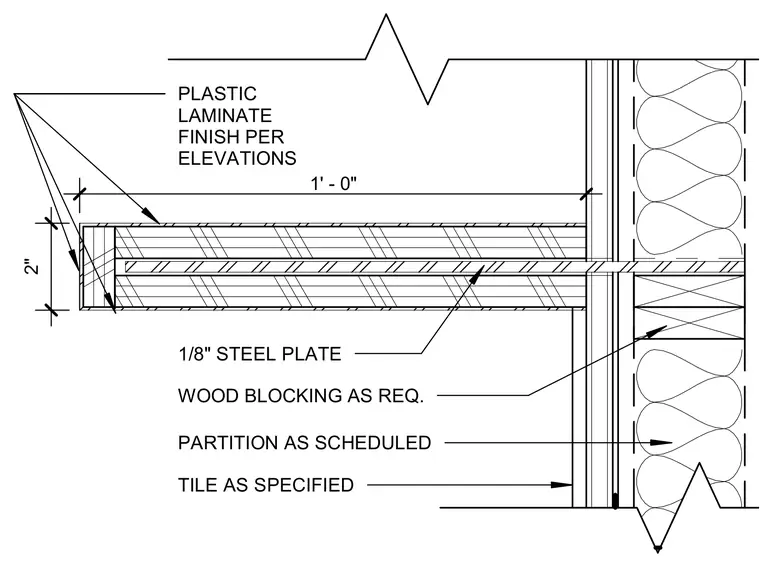

A one-eighth-inch steel plate extends from the partition wall to support the two-inch thick floating shelf assembly. Wood blocking is installed as required within the shelf core, which is finished with plastic laminate per elevations. The supporting partition wall features a tile finish as specified.
2" 1' - 0" 1/8" STEEL PLATE PLASTIC LAMINATE FINISH PER ELEVATIONS PARTITION AS SCHEDULED WOOD BLOCKING AS REQ. TILE AS SPECIFIED
