Accessible Urinal Clearance and Control Detail

Elements

About this detail

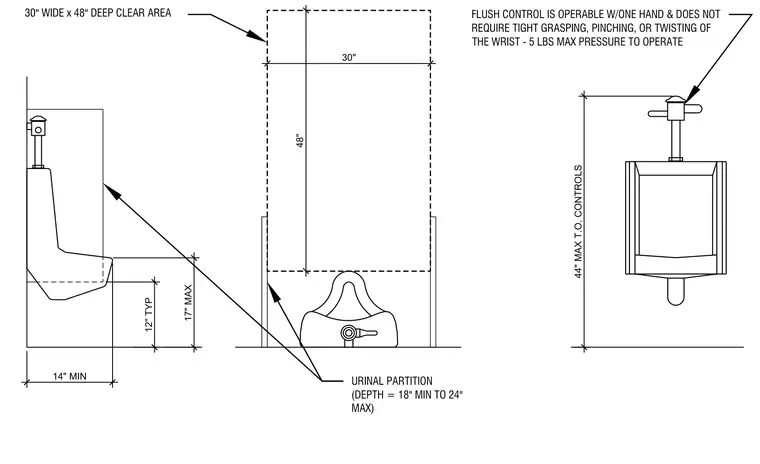

An accessible urinal installation requires a thirty-inch wide by forty-eight-inch deep clear floor area centered on the fixture. The flush control is operable with one hand without tight grasping, pinching, or twisting of the wrist, operating at a maximum pressure of five pounds and positioned at a maximum height of forty-four inches to the top of controls. The urinal partition features a minimum depth of fourteen inches, with an overall partition depth ranging from eighteen inches minimum to twenty-four inches maximum.
