Condensate Hood

Materials

Steel Stainless Steel

Elements

Doors Ceilings Floors / Slabs Drainage

Connections

Welded Connection

About this detail

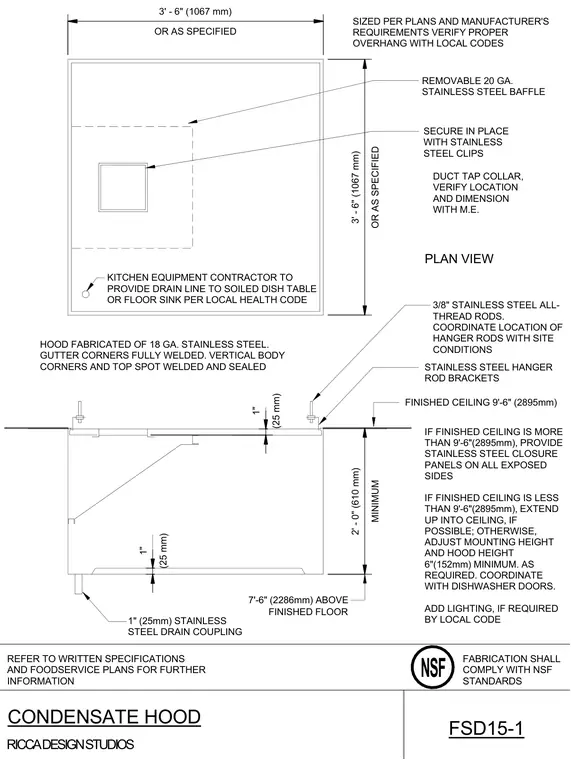

The assembly consists of an eighteen-gauge stainless steel hood body suspended from the ceiling using three-eighths-inch stainless steel all-thread rods and hanger brackets. Gutter corners are fully welded, while vertical body corners and the top are spot welded and sealed. Removable twenty-gauge stainless steel baffles are secured inside with stainless steel clips. A one-inch stainless steel drain coupling connects to a drain line directed to a soiled dish table or floor sink. A duct tap collar is provided on the top for mechanical connection, and stainless steel closure panels are used when finished ceiling heights exceed nine feet six inches.
