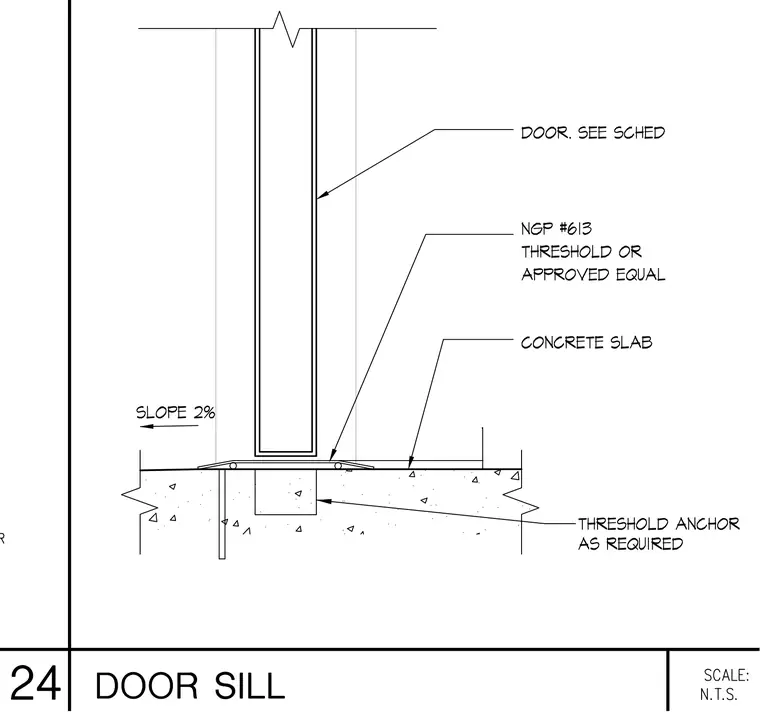

A door sits above a concrete slab with a 2% slope away from the opening. An NGP number 613 threshold or approved equal is anchored to the concrete slab below the door. A threshold anchor is provided as required within the slab blockout.
