Architectural · A-NRXMA

Upper and Lower Millwork Cabinet Section on Stud Wall

Materials

Cold-formed Steel Timber / Wood Stone Glass / Glazing Metal (misc.)Gypsum / Drywall

Elements

About this detail

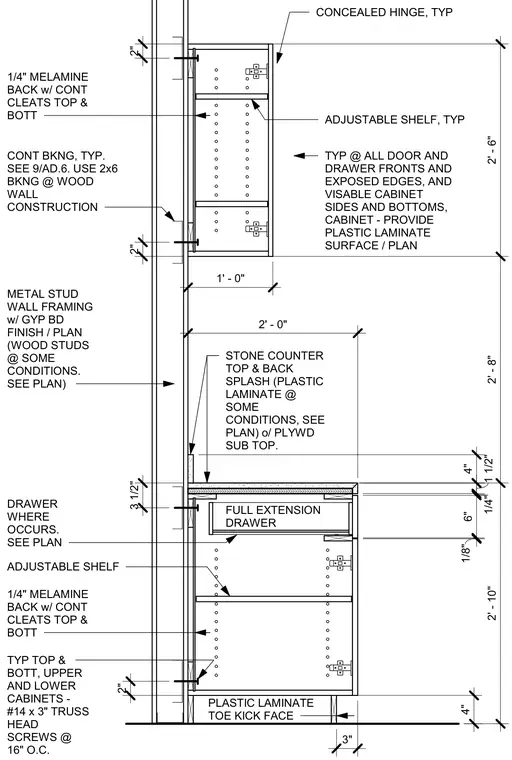

This interior millwork detail shows upper and lower cabinetry mounted against a metal stud wall framing with a gypsum board finish, utilizing wood studs at certain conditions as specified on plan. The lower cabinet features a stone countertop and back splash over a plywood sub top, with a plastic laminate surface provided at some conditions. Full extension drawers and adjustable shelves are integrated into the casework, which includes a quarter-inch melamine back with continuous cleats at the top and bottom. Upper and lower cabinets are fastened to continuous blocking using number fourteen by three inch truss head screws spaced at sixteen inches on center. A plastic laminate toe kick face completes the base of the lower cabinet.
