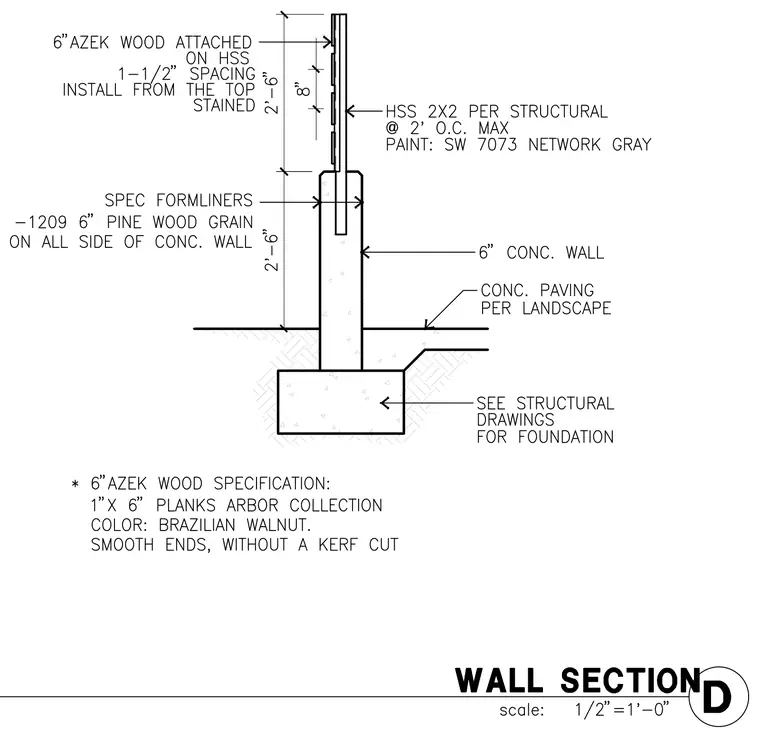

Six-inch Azek wood planks from the Arbor Collection in Brazilian Walnut are installed with one-and-one-half-inch spacing and stained, mounted to hollow structural section posts. The HSS 2x2 structural steel members are spaced at two feet on center maximum and painted with Sherwin-Williams 7073 Network Gray. The steel posts extend down into a six-inch concrete wall featuring special formliners with twelve-hundred-and-nine six-inch pine wood grain on all sides. The concrete wall bears on a continuous concrete footing designed per structural drawings, with concrete paving abutting the base.
