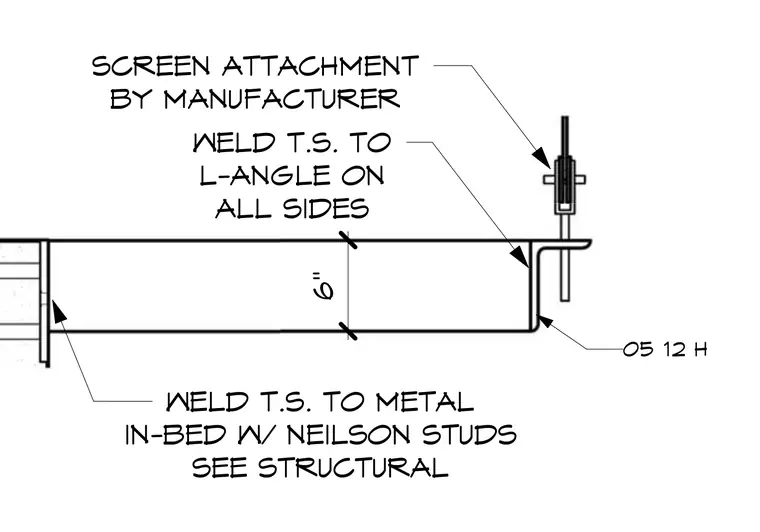

A six-inch structural steel tube connects to a metal in-bed plate featuring Neilson studs on one end per structural drawings. The opposite end connects via a welded angle iron on all sides to accommodate a manufacturer-supplied screen attachment. All structural connections are fully welded.
6" SCREEN ATTACHMENT BY MANUFACTURER 05 12 H WELD T.S. TO METAL IN-BED W/ NEILSON STUDS SEE STRUCTURAL WELD T.S. TO L-ANGLE ON ALL SIDES
