The upper cabinet features a white melamine interior housing two adjustable shelves and is fitted with plastic laminate doors matching the interior elevation. A metal pull is attached to the bottom rail, where an under-cabinet light is installed as indicated. The top of the cabinet meets the ceiling with a fixed panel aligned flush with the face of the door and finished to match the cabinet. Wood blocking is provided as required to affix the front panel to the ceiling structure.

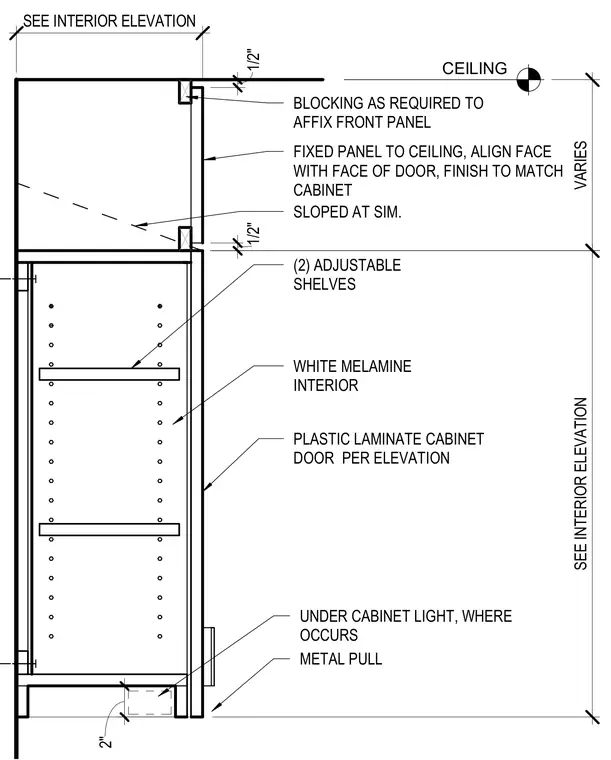

(2) ADJUSTABLE SHELVES PLASTIC LAMINATE CABINET DOOR PER ELEVATION FIXED PANEL TO CEILING, ALIGN FACE WITH FACE OF DOOR, FINISH TO MATCH CABINET BLOCKING AS REQUIRED TO AFFIX FRONT PANEL CEILING METAL PULL WHITE MELAMINE INTERIOR SEE INTERIOR ELEVATION SEE INTERIOR ELEVATION 2" VARIES UNDER CABINET LIGHT, WHERE OCCURS SLOPED AT SIM. 1/2" 1/2"
