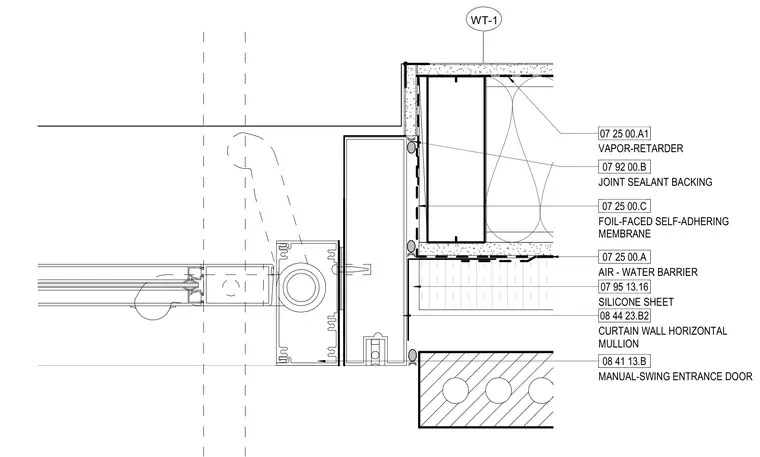

A manual-swing entrance door integrates with a curtain wall horizontal mullion at a brick masonry wall junction. A silicone sheet flashing and foil-faced self-adhering membrane provide continuous air and water barrier protection. A vapor-retarder is installed within the wall assembly behind joint sealant backing.
WT-1 07 95 13.16 SILICONE SHEET 07 25 00.A AIR - WATER BARRIER 07 25 00.C FOIL-FACED SELF-ADHERING MEMBRANE 07 25 00.A1 VAPOR-RETARDER 08 44 23.B2 CURTAIN WALL HORIZONTAL MULLION 08 41 13.B MANUAL-SWING ENTRANCE DOOR 07 92 00.B JOINT SEALANT BACKING
