Architectural · A-NR4PE

Curtain Wall Sill at Steel Floor Framing

Materials

Steel Glass / Glazing Aluminum Metal (misc.)Gypsum / Drywall

Elements

Columns Walls Curtain Walls Facades / Cladding Ceilings Floors / Slabs

About this detail

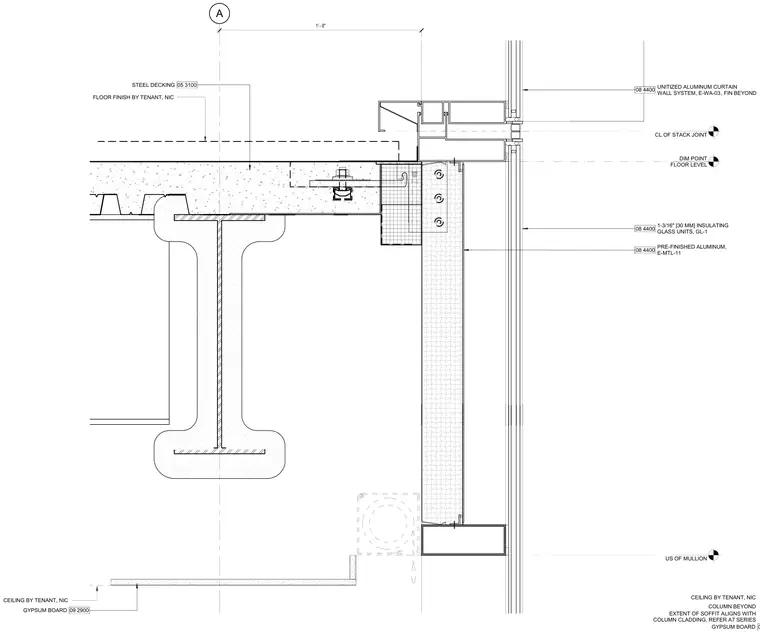

A unitized aluminum curtain wall system with one-and-three-sixteenth-inch insulating glass units connects to the structural slab edge, aligned with a stack joint datum. The floor assembly consists of steel decking topped with concrete, bearing on a wide-flange steel beam with floor finishes designated as not in contract. A pre-finished aluminum panel clads the spandrel zone below the vision glass. Gypsum board soffit construction is positioned below, with its extent aligned with the column cladding beyond.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
