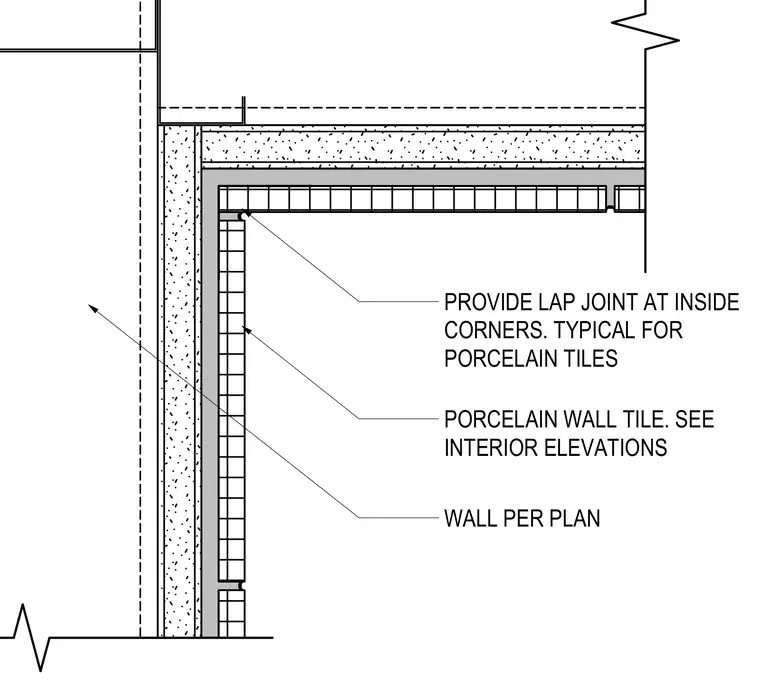

Porcelain wall tiles meet at an inside corner configured with a lap joint. The tile assembly is installed over a substrate wall constructed per plan. A lap joint detail is provided at inside corners and is typical for porcelain tiles.
PROVIDE LAP JOINT AT INSIDE CORNERS. TYPICAL FOR PORCELAIN TILES PORCELAIN WALL TILE. SEE INTERIOR ELEVATIONS WALL PER PLAN
